ASTM A213 Stainless Steel Tubes and Pipes

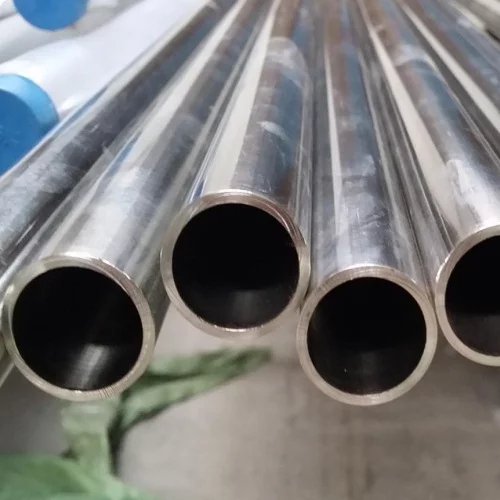

ASTM 213 Stainless Steel Pipes and Tubes Dealers in India

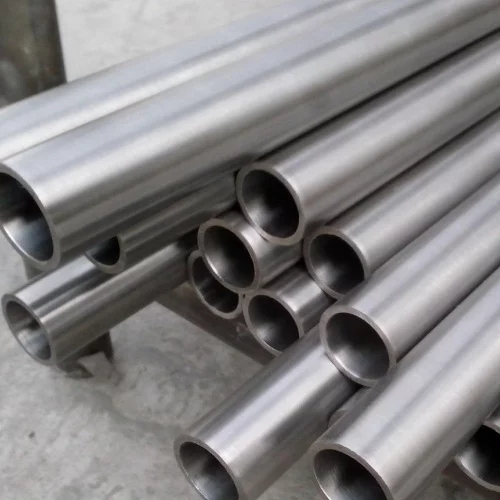

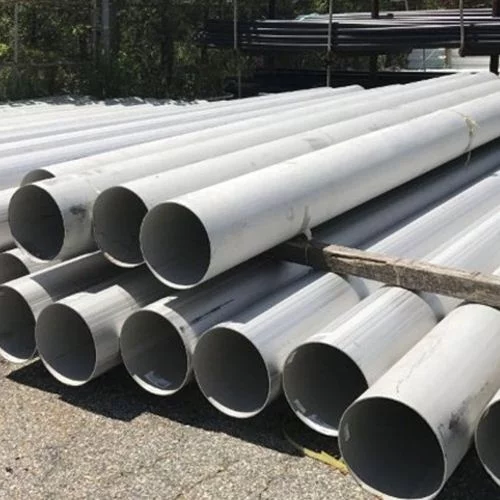

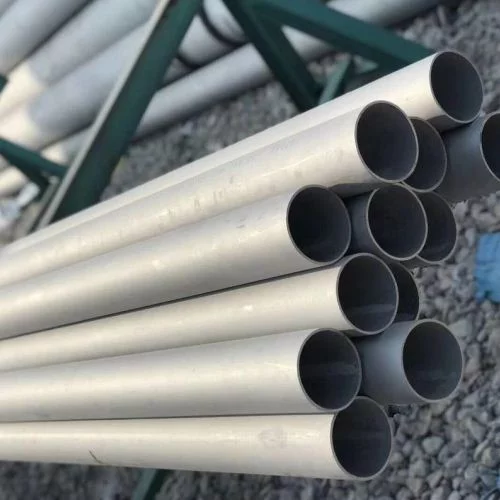

ASTM A213 Stainless Steel Pipes and Tubes

₹280.00

ASTM A213 Seamless Stainless Steel Tubes/Pipes for Boilers, Superheaters and Heat Exchangers

Metline is a professional ASTM 213 (TP 304, 316L) stainless steel tubes and pipes supplier and manufacturer with more than 30 years experience. Our stainless steel tubes are produced in compliance with ASTM A213 standards in stainless steel TP304, TP304L, TP304H, TP309S, TP309H, TP310S, TP310H,TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP348, TP348H. Stainless steel tubes and pipes supplied by Metline have excellent OD tolerance and mechanical properties enabling us to full fill the most demanding requirements from our customers. The quality of our tubes is ensured by our strict manufacturing process and testings at various stages of production.

For us quality always stands first, and we would provide 100% free replacement to our customer. At the same time, we also strive to ensure that our quality for cold drawn stainless steel pipes and tubes is the best in the industry. Our continuous focus on quality, price and service has helped us win many order from India, and overseas. We welcome you to contact us for best prices for cold drawn seamless stainless steel tubes from our factory.

  • Specification: ASTM A213
  • Grades: TP304, TP304L, TP304H, TP309S, TP309H, TP310S, TP310H,TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP348, TP348H
  • Size: 1/8” to 24” (10.3mm to 610mm)
  • Thickness:1 mm to 60 mm (Schedule 10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH)
  • Final Finishing: Solution Annealed & Pickled/Bright Annealed
  • Type of Tubes: U-bend & Straight

Manufacturing Specification

  • ASTM A213 / A 213M, ASME SA213 TP304/TP304L, TP316/TP316L Seamless stainless tubes is for Boilers, Superheaters and Heat Exchangers.

Why Choose Metline as Your Source for ASTM A213 Stainless Steel Tubes?

  • Quality Products: At Metline, our quality promise comes with a 100% replacement guarantee. All our products pass testing requirements of international manufacturing specification. All our stainless steel piping products are manufactured by ISO 9001 certified factory, and shipped with MTC according to EN 10204 3.1.
  • Best Price Guaranteed for ASTM A213 Stainless Steel Tubes: When you source Metline Industries, you source everything directly from the manufacturer and stockholder! We have an average daily sale volume of around 15-20 tons of stainless steel pipes & tubes from a stock of over 600 tons. We believe in offering our customer’s high quantity discounts and work closely with them on all their project requirements. We always offer the most competitive prices for stainless steel tubes to both prospective and existing customers.
  • Fast Quotations and Delivery for ASTM A213 304/316 Tubes: We understand your need for purchasing materials with short lead times. We have extensive stocks of standard size stainless steel pipes and tubes, enabling us to deliver goods on an immediate basis to all our customers in India and overseas. We have wide inventory of stainless steel seamless 304 and 316L pipes for fast delivery.
  • Quality Raw Materials: We use high quality raw materials to produce stainless steel pipes and tubes. Our raw materials are quality tested before being used in production of final product. We can also offer stage wise inspection for stainless steel pipes and tubes.
  • Standard and Non Standard Sizes for ASTM A213 TP 304/316 Stainless Steel Tubes: We can offer stainless steel tubes and pipes in both standard and non standard sizes with shortest delivery times.
  • Complete Documentation: We provide complete product related documents to our customers before delivery of the goods.
Categories: ,

Description

ASTM A213/A213M, ASME SA213  Stainless Steel Pipes & Tubes Manufacturers & Exporters in India

Metline is a distinguished manufacturer and exporter of ASTM A213 stainless steel pipes and tubes in India, with over 200 customers throughout the world. We are capable of offering ASTM A213, TP 304/316L stainless steel pipes and tubes to our customers with the best quality at lowest prices in the industry. We specialise in offer ASTM 213 TP 304/316L stainless steel pipes and tubes in size range of 1/2″ to 8″ in thickness upto 20mm.

Related Products – ASTM A213 seamless stainless tubes, ASTM A213 U bend stainless pipes, A312 seamless stainless tubes, TP304/TP304L/TP304H stainless tubes, TP309S/TP309H stainless tubes, TP310S/TP310H stainless tubes, TP316/TP316L stainless tubes. TP321/TP321H stainless tubes, TP347/TP347H stainless tubes, seamless stainless tubes, stainless tubes.

ASTM 213 Stainless Steel Pipes and Tubes Production, Stock & Supply Range

ProductASTM A213 Stainless Steel Pipes and Tubes
Standard Size1/8” to 24” (10.3mm to 610mm)
Thickness1 mm to 60 mm (Schedule 10s, 20, 40s, 40, 60, 80s, 80, 100, 120, 140, 160, XXH)
GradeTP304, TP304L, TP304H, TP309S, TP309H, TP310S, TP310H,TP316, TP316L, TP316H, TP317, TP317L, TP321, TP321H, TP347, TP347H, TP348, TP348H
Flaring Test (Seamless Tubes)One test shall be made on specimens from one end of one tube from each lot of finished tubes.
Flange Test (Welded Tubes)One test shall be made on specimens from one end of one tube from each lot of finished tubes
Hardness TestBrinell or Rockwell hardness determination shall be made on specimens from two tubes from each lot
Reverse flattening TestFor welded tubes, one reverse flattening test shall be made on a specimen from each 1500ft(460m) of finished tubing
Hydrostatic or Nondestructive TestingEach pipe shall be subjected to the nondestructive electric test or the hydrostatic test
CertificationEN 10204 3.1
TestingHydro Tested, Chemical, Mechanical Test, PMI
InspectionThird Party Inspection, Buyer Inspection
PackingWeaving Bag, Seaworthy Bundles, Wooden Case if required
Delivery Time1-2 Days for Material in Stock, 7-30 Days for Make to Order Materials



Chemical Composition of ASTM 213 Stainless Steel Pipes and Tubes

GradeUNSComposition, %
DesignCMnPSSiCrNiMoTiNbNCuCeBAl
TP304S304000.0820.0450.03118.0–208.0–11. . .. . .. . .. . .. . .. . .
TP304LS304030.03520.0450.03118.0–208.0–13. . .. . .. . .. . .. . .. . .
TP304LNS304530.03520.0450.03118.0–208.0–11. . .. . .. . .0.10-0.16. . .. . .
TP316S316000.0820.0450.03116.0–1810.0–142.00–3. . .. . .. . .. . .. . .
TP316LS316030.03520.0450.03116.0–1810.0–152.00–3. . .. . .. . .. . .. . .
TP316LNS316530.03520.0450.03116.0–1810.0–13. . .. . .. . .0.10-0.16. . .. . .
TP317S317000.0820.0450.03118.0–2011.0–153.0–4. . .. . .. . .. . .. . .
TP321S321000.0820.0450.03117.0–199.0–12. . .. . .. . .. . .. . .. . .
TP347S347000.0820.0450.03117.0–199.0–13. . .. . .. . .. . .. . .. . .
TP348S348000.0820.0450.03117.0–199.0–12.0. . .0.1. . .. . .. . .. . .C:
0.2
max
. . .S312540.0220.0450.035119.5–20.517.5-18.56.0-6.5. . .. . .0.18-0.220.50-1.50. . .. . .

Heat Treatment Requirements

GradeUNSHeat Treat TypeAustenitizing / Solutioning Temperature, min or range °F [°C]Cooling MediaASTM Grain Size No. B
Designation
TP304S30400Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP304LS30403Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP304HS30409Solution treatment1900 °F [1040 °C]water or another rapid cool7
TP309SS30908Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP309HS30909Solution treatment1900 °F [1040 °C]water or another rapid cool7
TP310SS31008Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP310HS31009Solution treatment1900 °F [1040 °C]water or another rapid cool7
TP316S31600Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP316LS31603Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP316HS31609Solution treatment1900 °F [1040 °C]water or another rapid cool7
TP317S31700Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP317LS31703Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP321S32100Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP321HS32109Solution treatmentcold worked:2000water or another rapid cool7
[1090] hot rolled: 1925 [1050]H
TP347S34700Solution treatment1900 °F [1040 °C]water or another rapid cool. . .
TP347HS34709Solution treatmentcold worked:2000water or another rapid cool7
[1100] hot rolled: 1925 [1050]H
TP444S44400subcritical anneal. . .. . .. . .



ASTM Referenced Standards

A262Practices for Detecting Susceptibility to Intergranular- lar Attack in Austenitic Stainless Steels.
A941Terminology Relating to Steel, Stainless Steel, Related Alloys, and Ferroalloys.
A1016/A 1016MSpecification for General Requirements for Ferritic Alloy Steel, Austenitic Alloy Steel, and Stain-less Steel Tubes



ASTM A213 Stainless Steel Pipes and Tubes

GradeSpecification
Stainless 304/304L, 304/304HASTM A213/SA213
Stainless 309SASTM A213/SA213
Stainless 310SASTM A213/SA213
Stainless 316/316L, 316/316HASTM A213/SA213
Stainless 317/317LASTM A213/SA213
Stainless 321/321HASTM A213/SA213
Stainless 347/347HASTM A213/SA213

Product Application

Stainless steel tubes/pipes are mainly used in petrochemical industry, hydropower stations, textile industry, pharmaceutical factories, decoration industry, industrial plants.
