SS 316 Welded Pipes Suppliers. UNS S31600/1.4401 Fabricated Pipes

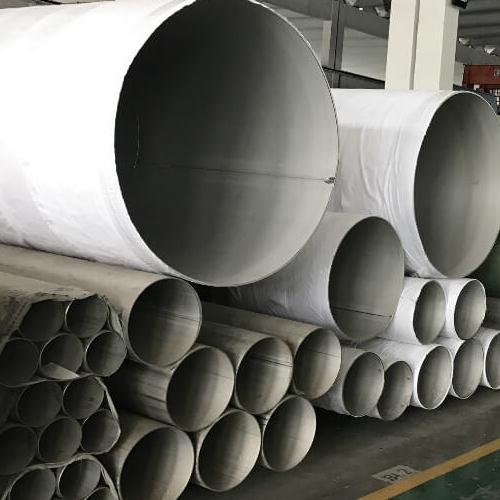

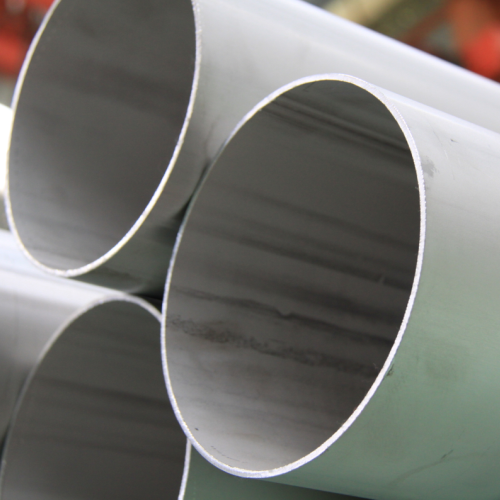

316 Stainless Steel Welded Pipes (1.4401, UNS S31600)

305.00

Specialist Manufacturers of  316 Welded/ERW/Large Diameter Stainless Steel Pipes in India – Largest Suppliers of Fabricated & Custom Size SS 316 Welded Pipes at Lowest Prices!

Metline is one of the biggest manufacturer and supplier of stainless steel 316 welded pipes in India, with daily sales of around 25-30 tons to customers across India and overseas. Our regular stock of products include SS 304/304L welded pipes, SS 316L welded pipes, SS 321/321H welded pipes, Duplex welded pipes, and SS 201 welded pipes in size range of 1/2″ NB to 24″. We also stock and manufacture stainless steel 316 welded pipes in OD size range from 1/4″ OD to 12″ OD in thickness upto 10mm.

Stainless steel electric resistance welded (ERW) pipe is manufactured by rolling metal and then welding it longitudinally across its length. SS ERW pipes are manufactured from Strip/Coils and can be manufactured upto 12” NB. For sizes from 6” NB to 36” NB, Metline can produce fabricated pipes, made from cut to size plates. The plates are first rolled and then 100% X-Ray welding is done. Since large diameter stainless steel 316 welded pipes cannot be made on a rolling mill, we produce such pipes by rolling cut to size plates and performing welding operations on them. All large diameter 316 welded stainless steel pipes, are produced as per ASTM A358 Class I to Class V specifications. Meanwhile, stainless steel 316 welded pipes in sizes from ½” to 12” (SCH 5, SCH 10, SCH 40) can be produced on rolling mill as per ASTM A312 specification.

Stainless steel 316 welded pipes are widely used in crude oil industry, chemical industry, petrochemical industry, construction industry, and food industry. In addition to SS 304 welded or fabricated pipes, we also manufacture and supply related fittings, bends, flanges and fasteners.

  • Equivalents: WNR. 1.4401, UNS S31600, AISI 316
  • Specification: ASTM A 312/ASME SA 312, ASTM A 358/ASME SA 358, ASTM A554, ASTM A249
  • Size: 1/2″ to 48″, Thickness: SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
  • Products: Welded Pipes, ERW Pipes, Electropolished Pipes, Square Pipes, Rectangular Pipes, Thick Wall Pipes, Thin Wall Pipes, Decorative Pipes, Polished Pipes, Round Pipes
  • Stainless steel welded pipes are available in sizes ranging from 1/2 in. to 48 in. & lengths of 20 ft.

Due to their high corrosion resistance and top quality, our stainless steel 316 welded pipes are widely supplied to many industries, such as electricity, petroleum, natural gas, chemicals, shipbuilding, heating, papermaking, metallurgy and so on.

Specifications:

  • ASTM A312 – This specification covers seamless, straight-seam welded, and heavily cold worked welded austenitic stainless steel pipe intended for high-temperature and general corrosive service
  • ASTM A358 – This specification includes electric-fusion-welded austenitic chromium-nickel stainless steel pipe.

Description

Stainless Steel 316 Welded Pipes Manufacturers, Exporters in India – UNS S31600, WNR. 1.4401 Large ERW Pipes

We manufacture 316 welded stainless steel pipes in schedule 10, 40 and 80 in 1/8″ to 24″ sizes. Our stainless steel 316 welded pipe processing capabilities include tapering, cutting, reaming, chamfering, grooving, machining and bending.

Metline Industries is a global manufacturer and supplier of stainless steel 316 welded pipes, stainless steel ERW pipes and large diameter stainless steel 316 welded pipes, with ex stock inventory of 600 tons. We manufacture, stock and sale ss 316 welded pipes in round, square and rectangular form with either mill finish or polished surface. Mill finish (Annealed & Pickled) stainless steel 316 welded pipes are generally used for industrial applications, where as polished ss 316 welded pipes are used for architectural and structural applications. Given our daily sales volume of 20-30 tons of stainless steel 316 welded pipes in India, we are capable of offering our customers with the best quality at lowest prices in the industry. We sincerely welcome new and old customers to co operate with us for all their stainless steel 316 welded pipes requirements.

316 Welded/ERW/Large Diameter Stainless Steel Pipes Production, Stock & Supply Range

ProductStainless Steel 316 Welded/ERW/Fabricated Pipes & Tubes
Standard Size1/2″ NB to 16″ NB
ERW Type1/2″ NB to 24″ NB
Fabricated (EFW Type)6″ NB to 100″ NB
Unit Length6 m, 12 m, 18 m, Custom Length
Thickness (mm)0.8mm – 30 mm
Surface FinishAnodized, Brushed, Mill Finished, Solution Annealed and Pickled, Polished Grit 120 – 600, Mirror Polished
ShapeRound, Square, Rectangular
SpecificationASTM A554, ASTM A312, ASTM A358 Class I to V, ASTM A249, ASTM A213, ASTM A268, ASTM A269, ASTM A789, ASTM A790
TypeWelded, Fabricated, ERW (Electrical Resistance Weld), LSAW Pipes
Material GradesAustenitic Stainless Steel:
304/304L/304H(1.4301/1.4306/1.4948);
316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S
(1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550);
Duplex Stainless Steel: S32001, S32003, S31500, 2205(1.4462);
S32304,(1.4362);S31803,2507 (S32750),
S32760(1.4501);S32101(1.4162);
Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo
(S31254, N08367)
Nickel Base Alloys: Alloy 20 (UNS N08020), Monel 200 (UNS
02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800),
Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811),
Incoloy 825 (UNS N08825), Inconel 600 (UNS N06600), 4J29,
4J36, GH3030, GH3039, C276 (UNS N10276)
Martensitic Stainless Steel: 410(1.4006), 410S(1.4000),
420(1.4021)
Ferritic Stainless Steel: 405(1.4002), 430(1.4016)
ApplicationsDecoration, Construction, Hardware, Mechanical Structure, Chemical Equipment, Pharmaceutical Equipment, Food Processing
CertificationEN 10204 3.1
TestingHydro Tested, Chemical, Mechanical Test, PMI
InspectionThird Party Inspection, Buyer Inspection
PackingWeaving Bag, Seaworthy Bundles, Wooden Case if required
Delivery Time1-2 Days for Material in Stock, 7-30 Days for Make to Order Materials
EndPlain Ends, Bevelled Ends, Threaded Ends

About 316 Stainless Steel

316 is a chromium-nickel based steel that possesses increased levels of resistance against several substances, due to the addition of molybdenum in its composition. The molybdenum allows SS 316 to be more resistance to corrosion overall, with specific resistance against chlorine pitting. SS 316 is also found to be more applicable in areas with high or elevated temperatures compared to other stainless steels. It has more heat resistance than Type 304 but otherwise possesses many of the same general characteristics.

316’s corrosion resistance is especially effective against chemicals, such as those used in the paper and textile industries. The metal finds other common applications in food processing equipment, chemical processing, nuts and bolts, and medical implants.

Types of 316, UNS S31600/1.4401 Stainless Steel Pipes

SS 316 Seamless PipesUNS S31600 Seamless PipesWRN. 1.4401 Seamless Pipes
SS 316 Welded PipesStainless Steel 316 Round PipesStainless Steel 316 Square Pipes
Stainless Steel 316 Rectangular PipesFabricated 316 Stainless Steel Pipes316 Electropolished Pipes

Equivalents of 316 Stainless Steel Welded Pipes Grade

GradeUNS NoOld BritishEuronormSwedish SSJapanese JIS
BSEnNoName
316S31600304S1158E1.4401X5CrNiMo17-12-22347SUS 316

Chemical Composition Of 316, UNS S31600/1.4401 Stainless Steel Welded Pipes

ELEMENT316
NI11.0 – 14.0
C0.08 max
MN2.0 max
P0.045 max
S0.30 max
SI1.0 max
CR16.0 – 18.0
MO2.0 – 3.0
N0.1 max
Ti_

Mechanical Properties Of 316, UNS S31600/1.4401 Stainless Steel Welded Pipes

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) maxBrinell (HB) max
3165152054095217

Physical Properties Of 316, UNS S31600/1.4401 Stainless Steel Welded Pipes

GradeDensity (kg/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity (W/m.K)Specific Heat 0-1000C (J/kg.K)Electrical Resistivity (n.m)
0-1000C0-3150C0-5380Cat 1000Cat 5000C
316775020015.916.21714.218.7500720

Applications of  316, UNS S31600 Stainless Steel Welded Pipes

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Related Keywords: SS 316 Welded Pipe, SS 316 Welded Pipe, SS 316 ERW Pipe, SS 316 EFW Pipe, Stainless Steel 316 ERW Pipe, Stainless Steel 316 EFW Pipe, Stainless Steel 316 Welded Pipe, 316 Welded Pipe, ASTM A312 Stainless Steel 316 Welded Pipes, ASTM A358 Stainless Steel 316 Welded Pipes

Additional information

Product

Stainless Steel 316 Welded Pipes, Stainless Steel 316 Fabricated Pipes, Stainless Steel 316 ERW Pipes

Product Size

OD (NB Sizes) 1/2" to 72"
Wall Thickness: SCH 5 to SCH XXS, Custom Thickness

Type

Seamless, Welded, Coiled, Straight Lengths

Material Grades

304, 304L, 316, 316L, 317/L, 321/321H, 310/310S, 347/347H, 904L, 254 SMO, Alloy 20, Duplex & Super Duplex

Quality Assurance

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Marking

As per Manufacturing Specification, Heat Number Traceability
