SS 347H Tubes Suppliers. Top Quality UNS S34709/1.4961 Seamless & Welded Tubes

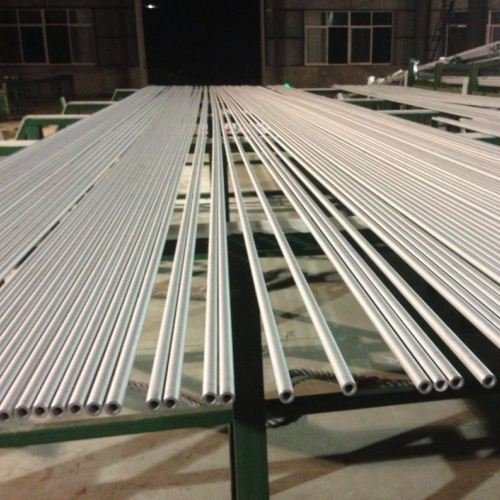

347H Stainless Steel Tubes

305.00

SS 347H Seamless & Welded Tubes Manufacturers & Suppliers, UNS S34709/1.4961 Tubes

  • Equivalents: WRN. 1.4961, UNS S34709 , AISI 347H
  • Specification: ASTM A312, ASTM A213, ASTM A268, ASTM A269
  • Size: 6mm to 101.4 mm, Thickness: 0.5mm to 10mm
  • Products: Seamless Tubes, Welded Tubes, ERW Tubes, Electropolished Tubes, Square Tubes, Rectangular Tubes, Thick Wall Tubes, Thin Wall Tubes, Decorative Tubes, Polished Tubes, Round Tubes
  • Stainless Steel 347H Tubes are available in sizes ranging from 1/4 in. OD to 5″ OD in. & lengths of 20 ft.

Metline is a professional stainless steel 347H tube supplier and manufacturer with more than 30 years experience. Our stainless steel 347H tubes are produced in compliance with ASTM A213/A269/A268 standards. SS 347H tubes supplied by Metline have excellent OD tolerance and mechanical properties enabling us to full fill the most demanding requirements from our customers. The quality of our tubes is ensured by our strict manufacturing process and testings at various stages of production.

Specifications:

  • ASTM A 269 Standard for Seamless Welded Stainless Steel Tube – Standard Specification for Seamless and Welded Austenitic Stainless Steel Tubing for General Service
  • ASTM A312 – Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes
  • ASTM A268 – Standard Specification for Seamless and Welded Ferritic and Martensitic Stainless Steel Tubing for General Service
  • ASTM A213 – Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes

SS 347H Seamless Tubes, SS 347H Welded Tubes, SS 347H Tubes Manufacturers, SS 347H Welded Tubes Wholesalers, SS 347H Seamless Tubes Suppliers in Mumbai, SS 347H Seamless Tubes Importers

Description

Manufacturers & Suppliers of Stainless Steel 347H Tubes, UNS S34709/1.4961 Seamless & Welded Tubes

Metline is a specialist manufacturer and supplier of 347H stainless steel tubes with Bright Annealing (BA Tube) or Polishing (Surface Roughness Ra 0.18). We produce 347H stainless steel tubes outside diameter 6mm upto 5″, in wall thickness upto 10mm. Metline is a professional producer of both thin wall and thick wall stainless steel tubes, with exports to over 70 countries across the globe. In addition to 347H stainless steel tubes, we can also produce and supply related tube fittings such as ferrule fittings, compression fittings, and couplings and valves.

Pipes are used to transport something, and tubes to construct something; hence, tubes are defined by the outside diameter and wall thickness (for construction stability), and pipes are measured by inside diameter to allow a calculation for transportation viz., speed, volumes, etc.

Stainless Steel 347H Tubes Size and Weight Chart

Stainless Steel Tube Size and Weight
Wall Thickness in mm0.50.60.70.811.21.622.633.23.6
O. D. in mm Weight in kg/m
60.0690.0810.0930.1040.1250.1440.176
100.1190.1410.1630.1840.2250.2640.336
12.70.1530.1820.210.2380.2930.3450.444
140.1690.2010.2330.2640.3250.3840.496
15.870.1920.2290.2660.3010.3720.440.5710.694
190.2310.2760.320.3640.450.5340.6960.851.0661.21.264
250.3060.3660.4250.4840.60.7140.9361.151.4561.651.7441.926
25.40.3110.3720.4320.4920.610.7260.9521.171.4821.681.7761.962
31.80.9181.2081.491.8982.162.2882.538
381.1041.4561.82.3012.6252.7843.096
44.51.2991.7162.1252.7243.1133.3043.681
50.81.9682.443.1333.5853.8084.248
63.52.4763.0753.9594.5384.8245.391
76.12.983.7054.7785.4835.8326.525
101.644.986.4357.3957.8728.82
114.34.4535.5477.1738.2478.789.84
1274.9556.1757.9899.1889.78510.98
152.45.967.4299.6211.0711.79213.231

Production & Stock Range for 347H UNS S34709/1.4961 Seamless & Welded Tubes

ProductStainless Steel 347H Tube
OriginIndia, Japan, Europe, US
FormWelded and Seamless
SpecificationASTM A213, ASTM A268, ASTM A269, ASTM A789, ASTM A790
TypeFluid, Food, Decorative, Structural, Instrumentation
Round Tube (mm)4.76 OD to 203.2 OD
Square (mm)12.7 to 152.6
Rectangular (mm)25.4 x 12.7 to 203.2 x 101.6
Grades
  • Austenitic Stainless Steel: 304/304L/304H(1.4301/1.4306/1.4948); 316/316L(1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 309S (1.4833); 310S(1.4845); 317L(1.4438)321H(1.4878); 347H (1.4550);
  • Duplex Stainless Steel: S32001, S32003, S31500, 2205(1.4462); S32304,(1.4362);S31803,2507 (S32750), S32760(1.4501);S32101(1.4162);
  • Super Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo (S31254, N08367)
  • Nickel Base Alloys: Alloy 20 (UNS N08020), Monel 200 (UNS 02200), Monel 400 (UNS N04400), Incoloy 800 (UNS N08800), Incoloy 800H (UNS N08810), Incoloy 800HT (UNS N08811), Incoloy 825 (UNS N08825), Inconel 600 (UNS N06600), 4J29, 4J36, GH3030, GH3039, C276 (UNS N10276)
  • Martensitic Stainless Steel: 410(1.4006), 410S(1.4000), 420(1.4021)
  • Ferritic Stainless Steel: 405(1.4002), 430(1.4016)
Wall Thickness0.33 to 10.0mm
FittingsTtri-clamp, Butt Welding, Flanges, Compression Fittings, Double Compression, Ferrule Fittings
ProcessingCut-to-length, Polishing, Bright Annealed, 180 Grit, 240 Grit, 400 Grit
Test CertificatesAs per EN 10204 3.1
Other TestsAs per Customer QAP, Hydro Test, Destructive & Non Destructive Tests
PackingBundled Packing, or Wooden Box Packing

About 347H Stainless Steel Tube

347H is another stainless steel in a class of metals labeled of precipitation-hardened steels. It possesses many of the same properties and characteristics of stainless steel 347. In addition to its higher carbon content, the alloy is stabilized with an addition of columbium, or sometimes tantalum. Both these properties allow 347H to be exposed to higher temperatures than both 347 and the 304 stainless steel grades can withstand. Because of its elevated resistance to corrosion, 347H is often applied in high stress, high corrosion environments where exposure tends to be severe. High temperature manufacturing, steam pipes, boiler tubes, chemical processes and steam servicing all benefit from 347H’s resilience. This resilience in turn is due to the potentially elevated levels of chromium in 347H’s composition. The metal can contain anywhere from 4-30%.
The metal displays high workability under most common welding techniques. It can be treated with heat, however, it will not respond. Only cold working is sufficient to increase 347H’s toughness and strength.

Types of 347H, UNS S34709, 1.4961 Stainless Steel Seamless & Welded Tubes

SS 347H Seamless TubesUNS S34709 Seamless TubesWNR. 1.4961 Seamless Tubes
SS 347H Welded TubesStainless Steel 347H Round TubesStainless Steel 347H Square Tubes
Stainless Steel 347H Rectangular TubesFabricated 347H Stainless Steel Tubes347H Electropolished Tubes

Equivalents of 347H, S34709/1.4961 Stainless Steel Seamless & Welded Tubes Grade

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 347H1.4961S34709SUS 347H_X6CrNiNb18-12

Chemical Composition of 347H, S34709/1.4961 Stainless Steel Seamless & Welded Tubes

347H
Ni9 – 13
Cr17 – 19
C0.04 – 0.10
Mo3 – 4
FeBalance
Mn2 max
Si0.75 max
S0.03 max
P0.045 max
Co + Ta8xC min
1.00 max

Mechanical Properties of 347H, S34709/1.4961 Stainless Steel Seamless & Welded Tubes

GradeTensile Strength (MPa) minYield Strength 0.2% Proof (MPa) minElongation (% in 50mm) minHardness
Rockwell B (HR B) maxBrinell (HB) max
347H5152053592201

Physical Properties of 347H, S34709/ 1.4961 Stainless Steel Seamless & Welded Tubes

GradeDensity (kg/m3)Elastic Modulus (GPa)Mean Coefficient of Thermal Expansion (m/m/0C)Thermal Conductivity (W/m.K)Specific Heat 0-1000C (J/kg.K)Electrical Resistivity (n.m)
0-1000C0-3150C0-5380Cat 1000Cat 5000C
347H800019315.916.217.014.218.7500740

Applications of UNS S34709/1.4961 & 347H Stainless Steel Seamless & Welded Tubes

  • Off-Shore Oil Drilling Companies
  • Power Generation
  • Petrochemicals
  • Gas Processing
  • Specialty Chemicals
  • Pharmaceuticals
  • Pharmaceutical Equipment
  • Chemical Equipment
  • Sea Water Equipment
  • Heat Exchangers
  • Condensers
  • Pulp and Paper Industry

Additional information

Product

Stainless Steel 347H Tubes, UNS S34709/1.4961 Stainless Steel Seamless & Welded Tubes

Product Size

OD (NB Sizes) 1/2" to 72"
Wall Thickness: SCH 5 to SCH XXS, Custom Thickness

Type

Seamless, Welded, Coiled, Straight Lengths

Material Grades

304, 304L, 316, 316L, 317/L, 321/321H, 310/310S, 347/347H, 904L, 254 SMO, Alloy 20, Duplex & Super Duplex

Quality Assurance

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Marking

As per Manufacturing Specification, Heat Number Traceability
